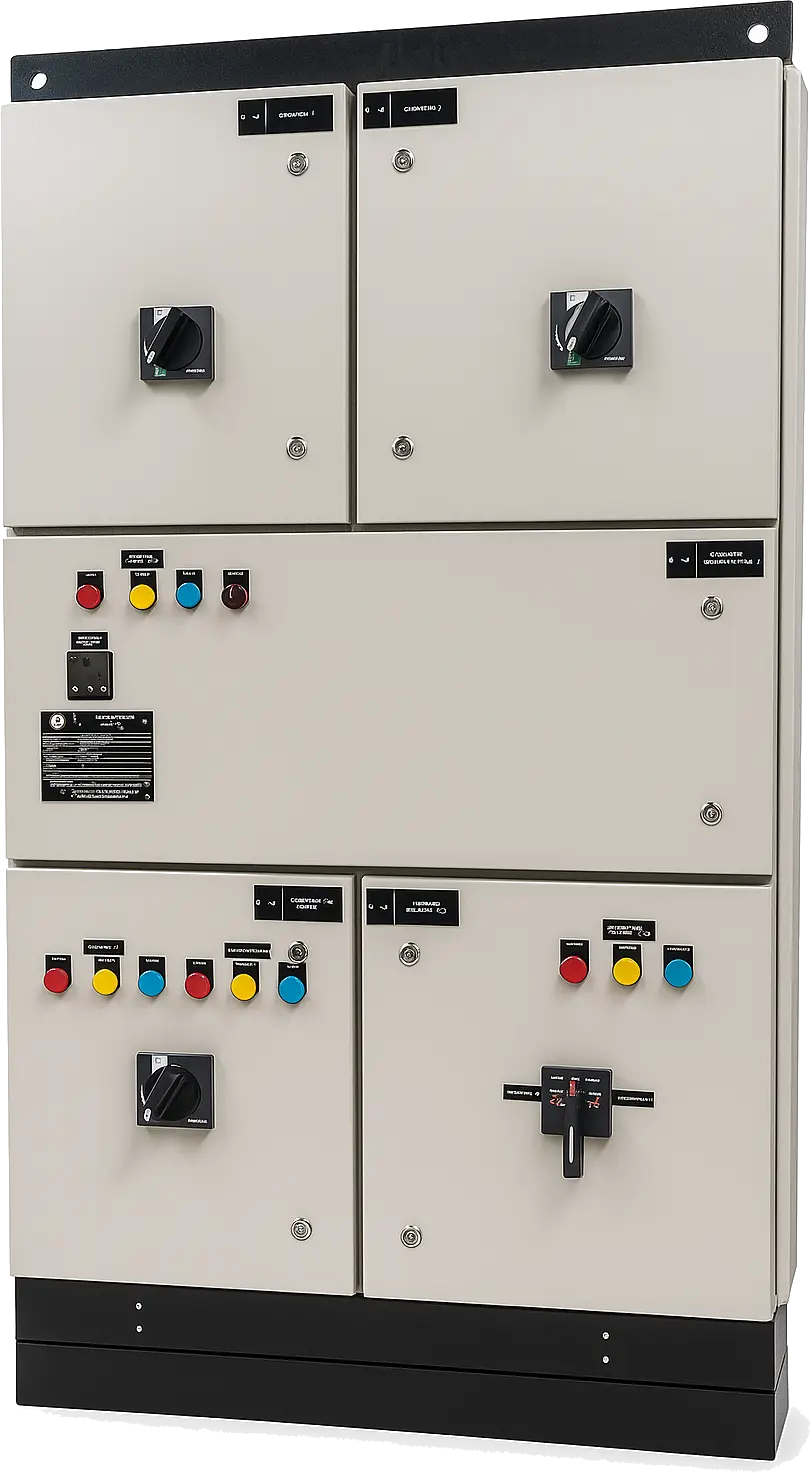

POWER DISTRIBUTION UNIT (PDU)
- Up to 600 kVA capacity range
- Operating voltage: 415V/415V (or as per required voltage ratio)
- Transformer configuration: Delta–Star (Dyn11) or Delta–Zigzag Star (Dyn11)
- K-rated transformers (K13 / K20) for harmonic mitigation with non-linear loads
- Manual changeover switch for safe bypass during maintenance or emergencies
- Over-temperature protection with integrated audio-visual alarm indication
- Soft starters (inrush current limiter) available in both manual and automatic operation
- Typical applications: Data centers, UPS output isolation, and power conditioning systems
